4 Axis CNC Rotary Table

Name: 4 Axis CNC Rotary Table
Brand: Juzhuo
Price: 1 USD

Worm gear ratio : 1to120

Rotary Table Diameter : 800mm

Place of Origin : Guangdong, China

Repeatability accuracy : 4

total thickness : 390mm

video outgoing-inspection : Provided

Locating key size (mm) : 22mm

machinery test report : Provided

weight (kg) : 1500

Center height(mm) : 465

MOQ : 1

T-slot size (mm) : 8-18H12

Center through hole : 135(F230)H6

warranty : 3 Years

Brand Name : Juzhuo

Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine, Boring Machine, turning machine, shaping machine, planning machine

Total reduction ratio : 1to 360

Dividing accuracy : 15

Contact Now

CNC 4th Axis Rotary Table, Horizontal Vertical Precision Rotary Tables

Product Introduction

The Model NC-800 worm gear and worm wheel structure 4-axis rotary table is a rotational device used in machine tools, designed for precision manufacturing applications.

Key Features

High transmission ratio: Single-threaded worm gear achieves transmission ratios up to 100:1 or more, ideal for applications requiring significant reduction ratios
Compact structure: More space-efficient compared to multi-stage gear transmission systems
Self-locking property: Small helix angle prevents reverse drive, enhancing operational safety

Technical Parameters

Product Tags:

Servo 4 Axis CNC Rotary Table

High Torque Spindle Rotary Table

Compact High Performance Rotary Table

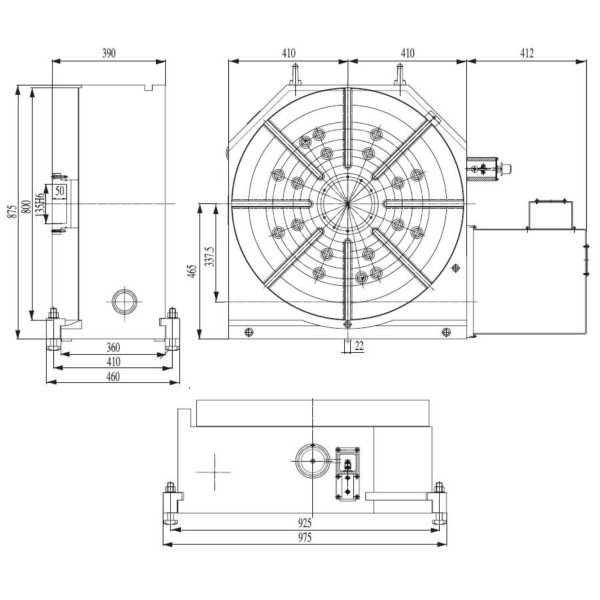

4 Axis CNC Rotary Table Images
